2460mm Gooseneck Truck Body / Pantech Roof

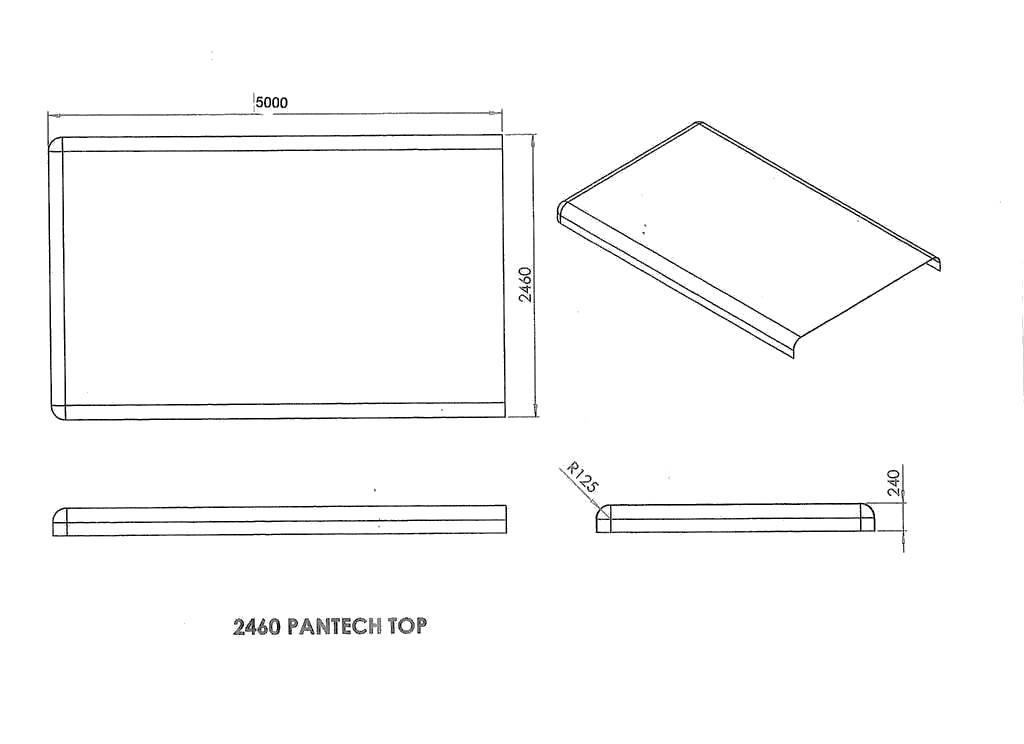

This Roof can be used for Goosenecks, Semi-Trailers, Truck bodies, Horse Boxes and Stock Crates. The Overall height is 240mm and all the corners are rounded to a 125mm radius.
This roof can be supplied with the rolled front corners or without if it is needed to fit up close to a headboard.
If supplied with the rolled front an extra piece of roof will fit on end on the front of the trailer and come around each front corner 240mm allowing the roof to overlap. As shown in the gooseneck picture.
The mould length is 5 metres however we can supply a one piece roof up to whatever length you require by extending in the mould. The longest roof to date has been 14.7 metres.
Product Details
- Reference Number
- 3
- Category
- Fibreglass Roofs
- Model
- B2460
- Width
- 2460mm
- Height
- 240mm
- Length
- 5000mm
